JARCRAC EVOPRO AND JARCRAC DUAL,
a new concept of forest machines
LAST GENERATION: EVOPRO AND DUAL
The new JARCRAC 2018 series is, thanks to the new bogie structure and the high ground clearance, even more capable than the earlier series, especially in difficult terrain conditions.
The chassis construction and the shape of the tracks enable difficult obstacles, such as deep ditches. The benefits of the new construction are particularly evident on soft terrains.
On the other hand, the newly designed tracks with metal shoes are wear resistant and enable driving in hard or even stony terrain. Upon request, the machine can be delivered with full-rubber tracks, which might be an option worth considering if the machine needs to be used e.g. on public roads
FULLY RENOVATED DESIGN & TECHNIQUE
The cabin of the new JARCRAC models has a completely new design. Espacious and equipped with an intuitive panel of control.

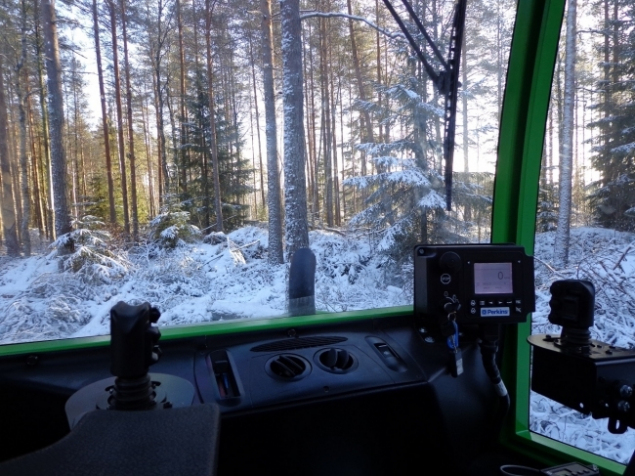

All windows are larger than before, and the curved rear window enables seeing tree tops during harvesting. The cabin is now better protected against shocks, noise and temperature variations, and features a tipping mechanism for easier service operations underneath the cabin.
Advance and acceleration pedals of the have been eliminated and replaced by an extra function of the joystick.
Seat is ergonomic, multi adjustable and comfortable. Improved drive joysticks make easy they use. Optional air-conditioning, radio and 4 track locks.
The JARCRAC EVOPRO and DUAL models are based on the same basic design. The machine is powered by a Perkins common rail diesel engine that fulfils the latest emission directives.
The transmission is full-hydraulic four-wheel-drive with two speed areas.
As a standard, JARCRAC is equipped with a Kesla 202T (6.7 m) crane and Walvoil steering hydraulics. Other crane options are also available. An automatic frame lock ensures stability during the crane’s operation.
A VERSATIL FOREST MACHINE
The new JARCRAC 2018 series is, thanks to the new bogie structure and the high ground clearance, even more capable than the earlier series, especially in difficult terrain conditions. The chassis construction and the shape of the tracks enable difficult obstacles, such as deep ditches. The benefits of the new construction are particularly evident on soft terrains.
On the other hand, the newly designed tracks with metal shoes are wear resistant and enable driving in hard or even stony terrain. Upon request, the machine can be delivered with fullrubber tracks, which might be an option worth considering if the machine needs to be used, for instance, on public roads.
JARCRAC machines are perfect for use in young forests all around the year. The specially designed tracks don’t damage the soil or the roots of the trees. In addition, the fuel consumption has been optimized too.
A VERY COMPETITIVE PRICES
In JARCRAC we think that the quality does not have to oppose a reasonable price, for that EVOPRO and DUAL models have a very attractive price, affordable to a any typical forest owner.
Ask to our dealers for more details and let yourself be surprised by the remarkable relation quality/price of JARCRAC forest machines.
POWERFUL HARVESTER HEAD
Nisula 325H is provided with a basic JARCRAC DUAL but other models are also possible e.g. AM300 or Keto Forst
The change of operative head (grapple/harvester head) takes only half an hour.
The working pump is proportionately larger for a greater oil demand of the harvester head.
A GRAPPLE WITH MANY POSIBILITIES
Multi function grapple KESLA comes with both models JARCRAC EVOPRO and DUAL.
More than 6 meters long crane makes possible to reach distant stems.
Operated with easy joysticks and a computer screen from the cabin by the machine´s driver.
A VERY SUITABLE LOAD SPACE
More than 4 meters long load space, provided with four removals stokes in each side, and a extra part to lengthen the load space make of the new JARCRAC models a versatile machine not only for harvesting (DUAL) but for forwarding too.
With capacity for 5000 kg of load and a front gate of 1,8 m2 make it an appropriate machine for medium-scale forest harvesting.
FULLY DIGITALIZATED FOREST MACHINE
JARCRAC new generation forest machines are equipped with the last technology to control all the parameters: from the motor to the length of the logs, going through the intelligent drive box that controls the drive system of the machine.
Ltd – dealer for Jarcrac forest machines
Dealer for Jarcrac forest machines in all countries
AM Resources international web pag. watch the link
Manufacturer's website: www.jarcrac.com
Jarcrac – effective, economical and
reliable small forest machine for demanding harvesting
Jarcrac forest machines brochure and technical specifications
International Jarcrac dealers
Mr. Juhani Vuori, Managing Director
Tel +358 44 0707 147
34300 Kuru Finland
. Watch the link
News (from 2017):
JAN 2018 Jarcrac Evopro with KESLA Pro G20 grapple and Mowi P30 crane has been delivered to Czech Republic
AUG 2017 Jarcrac Dual with Nisula 325H harvesting head and Mowi
P30 crane has been delivered to a customer. Watch a video
Updated Feb. 2018 by Juan M. Sandin
